Overview

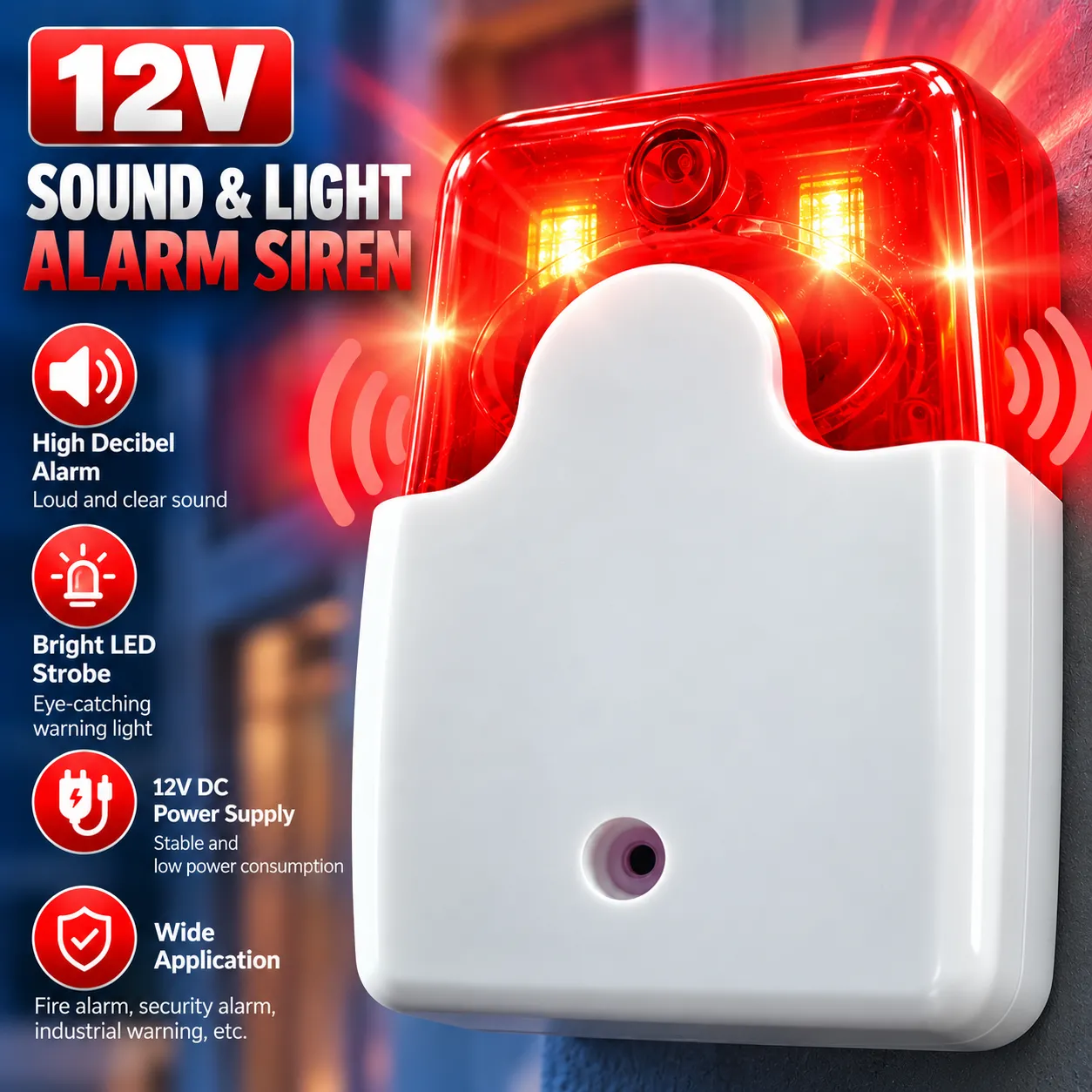

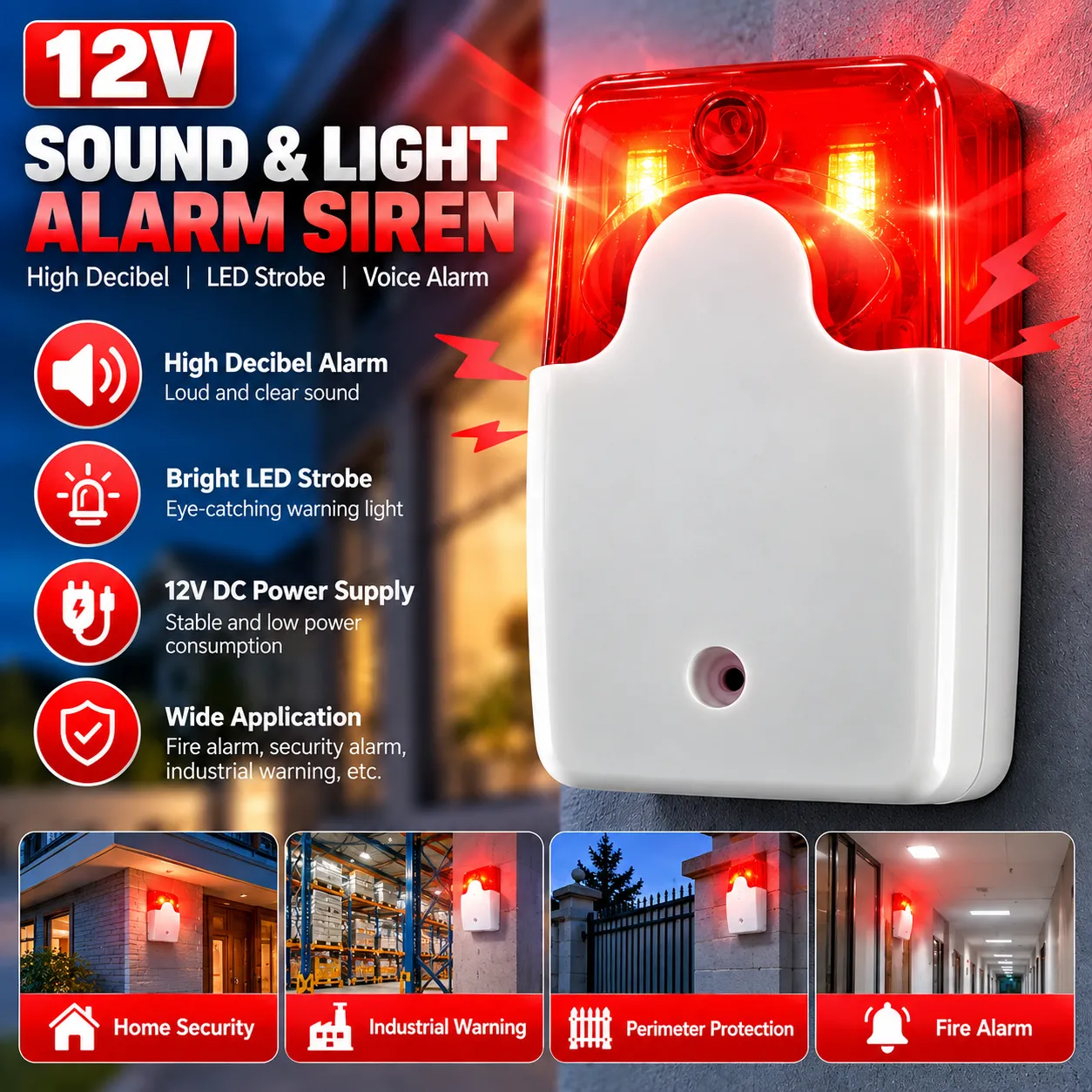

This compact 12V wired alarm siren delivers a loud 110dB alert, making it suitable for fire alarm systems, security panels, and industrial warning applications. It features a durable housing with a high-temperature flame-retardant ABS base and a transparent high-brightness acrylic lens available in red, blue, or yellow. Designed for screw mounting, it is easy to install on walls or panels, and its flashing rate of 90–120 times per minute ensures high visibility in noisy or low-light environments.
Key selling points
- Loud 110dB sound output for effective warning in fire and security applications.
- Low power consumption at 300mA, compatible with standard 12V alarm panels.
- Durable construction: flame-retardant ABS base and high-brightness acrylic lens.
- Visual alert with 90–120 flashes per minute for added noticeability.
- Compact size (122.2 × 72.8 × 43 mm) and lightweight (85g) for easy mounting.
- Available in red, blue, and yellow lens options to match system codes.
Specs & variants
| Parameter | Specification |
|---|---|
| Type | Wired alarm siren / horn |
| Rated voltage | 12V |
| Rated current | 300mA |
| Sound output | 110dB |
| Flash rate | 90–120 times per minute |
| Mounting | Screw mounting |
| Dimensions | 122.2 × 72.8 × 43 mm |
| Weight | 85g |
| Housing material | Flame-retardant ABS (white base), transparent high-brightness acrylic (colored lens) |
| Lens colors | Red, blue, yellow |
| Application | Fire alarm and security systems |
Notes / compliance
- Ensure compatibility with your alarm panel voltage and wiring before installation.
- For indoor use unless otherwise specified; avoid direct exposure to extreme weather.
- Check local regulations for fire alarm equipment compliance.
